Ghana Water Treatment Project Achieves Breakthrough with Self-Cleaning Filtration System

A major water treatment facility in Ghana has successfully implemented a self-cleaning filter system to address challenging surface water filtration requirements. This advanced installation has significantly improved water quality while reducing operational costs for the community water supply system.

Project Background
The treatment plant faced persistent challenges in processing local surface water:

High sediment load during rainy seasons

Frequent clogging of conventional filtration systems

High maintenance requirements and operational downtime

Need for continuous operation without interruption

Technical Implementation

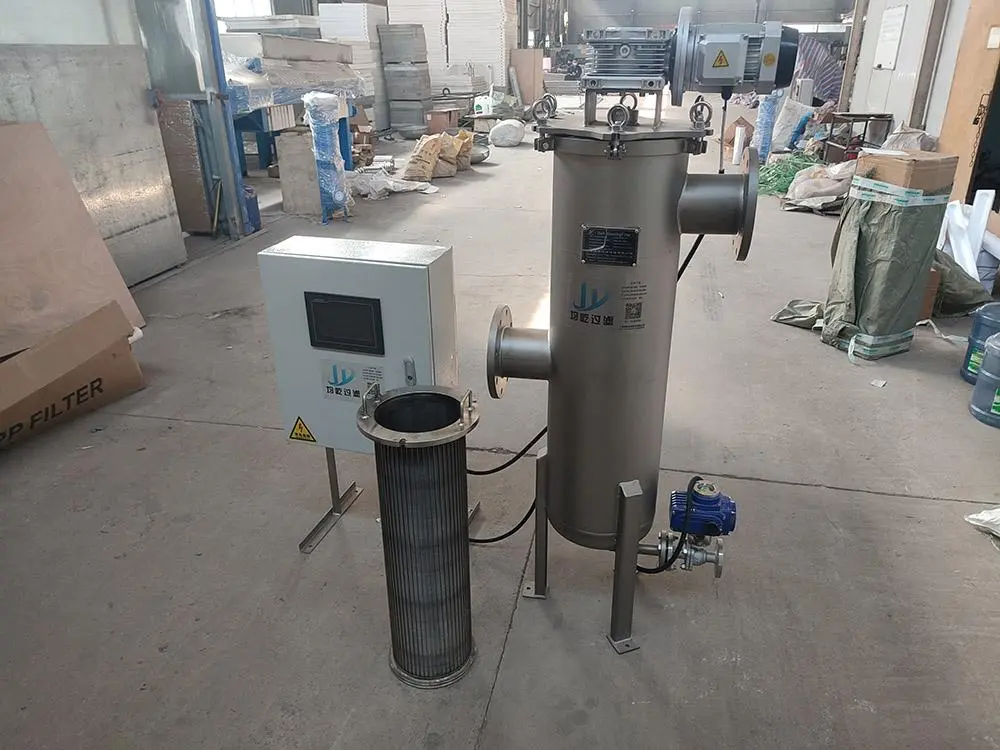

The JYSCF-250 system features cutting-edge design elements:

High-Capacity Performance:

Maximum flow rate of 100 m³/h with purified water output

304 stainless steel construction resistant to corrosion

DN125 PN10 inlet/outlet connections with HG flange standard

Advanced Filtration Technology:

Automatic self-cleaning functionality with a 1.1 kW motor

Dual monitoring: differential pressure (≤0.1 MPa) and time-based cleaning

Electric valve-controlled drainage system (DN40 sewage outlet)

Sandblasted surface treatment for enhanced durability

Adaptable Design Features:

Top-in, bottom-out flow configuration (modifiable as needed)

EPDM sealing rings for reliable performance

Eye bolt connection-type top lid for easy maintenance

Operational Achievements
The installation has delivered exceptional results:

99.8% filtration efficiency for sediment and particulate matter

60% reduction in maintenance requirements compared to previous systems

Continuous operation capability with automatic cleaning cycles

Significant improvement in final water quality metrics

Technical Specifications

Model: Self-Cleaning Filter

Flow Rate: Maximum 100 m³/h

Design Pressure: 1.0 MPa

Operating Temperature: ≤90°C

Client Validation
"This filtration system has revolutionized our water treatment process," stated the Plant Manager. "Its ability to handle variable water conditions while maintaining consistent output quality has been remarkable. The automatic cleaning feature has eliminated our previous maintenance challenges."
