Multi-Layer Plate Frame Filter Helps Armenian Winery Achieve Premium Wine Filtration

Yerevan, Armenia – Shanghai Junyi Filter Manufacturing Co., Ltd., a leading manufacturer of industrial filtration equipment, has successfully supplied its advanced multi-layer plate frame filtration system to a renowned winery in Armenia, significantly improving their wine clarification process.

Technical Highlights of the Filtration System:

  1、High-Precision Filtration

    Specially designed for liquid filtration using diatomaceous earth or activated carbon

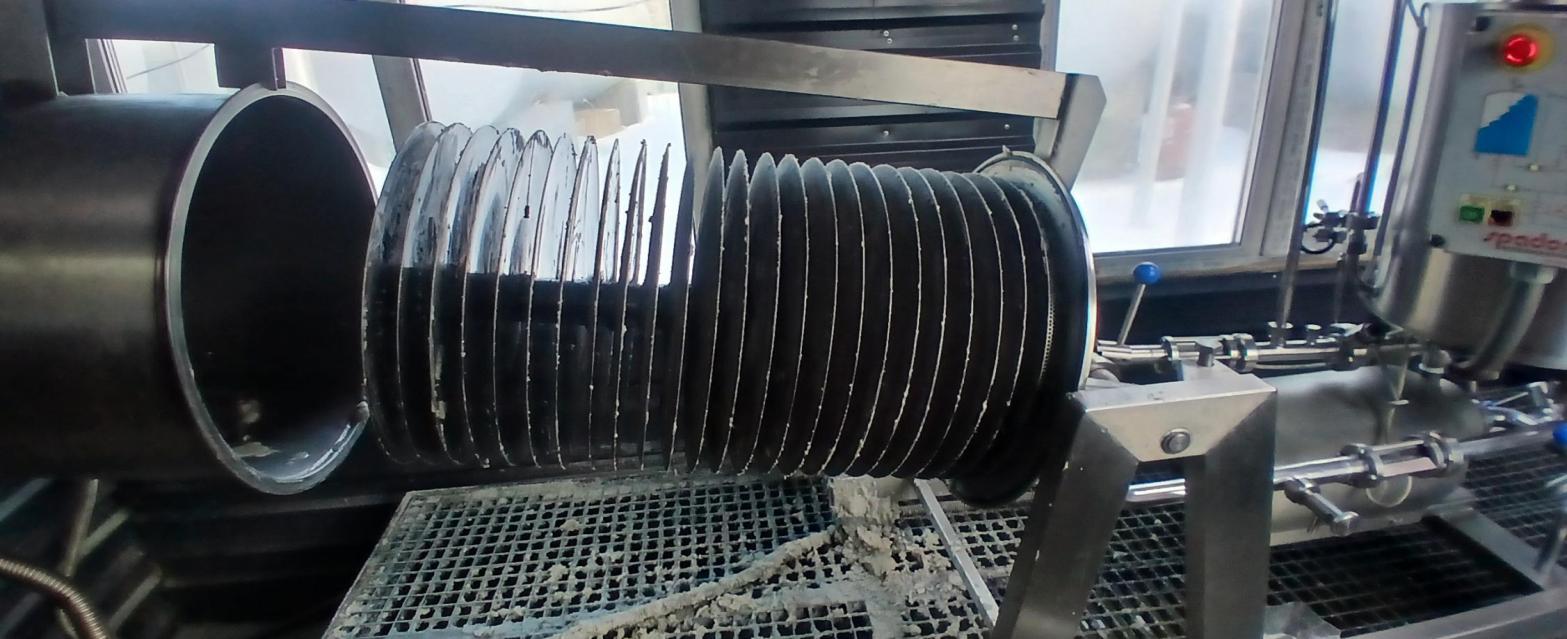

    20-layer filtration structure (10 groups) with φ410mm filter plates

   60μm filtration precision ensures crystal-clear wine quality

   2.5m² large filtration area with 12T/h maximum flow capacity

 2、Premium 304 Stainless Steel Construction

   Entire system constructed with food-grade 304 stainless steel

  Includes main pump (1.5kw) and metering pump (0.25kw)

 0.6MPa maximum filtration pressure

 3、Smart Design Features

  Computer-punched holes ensure even pressure distribution

  DN40 inlet/outlet diameter

  Mobile design with universal wheels (580kg/set after packaging)

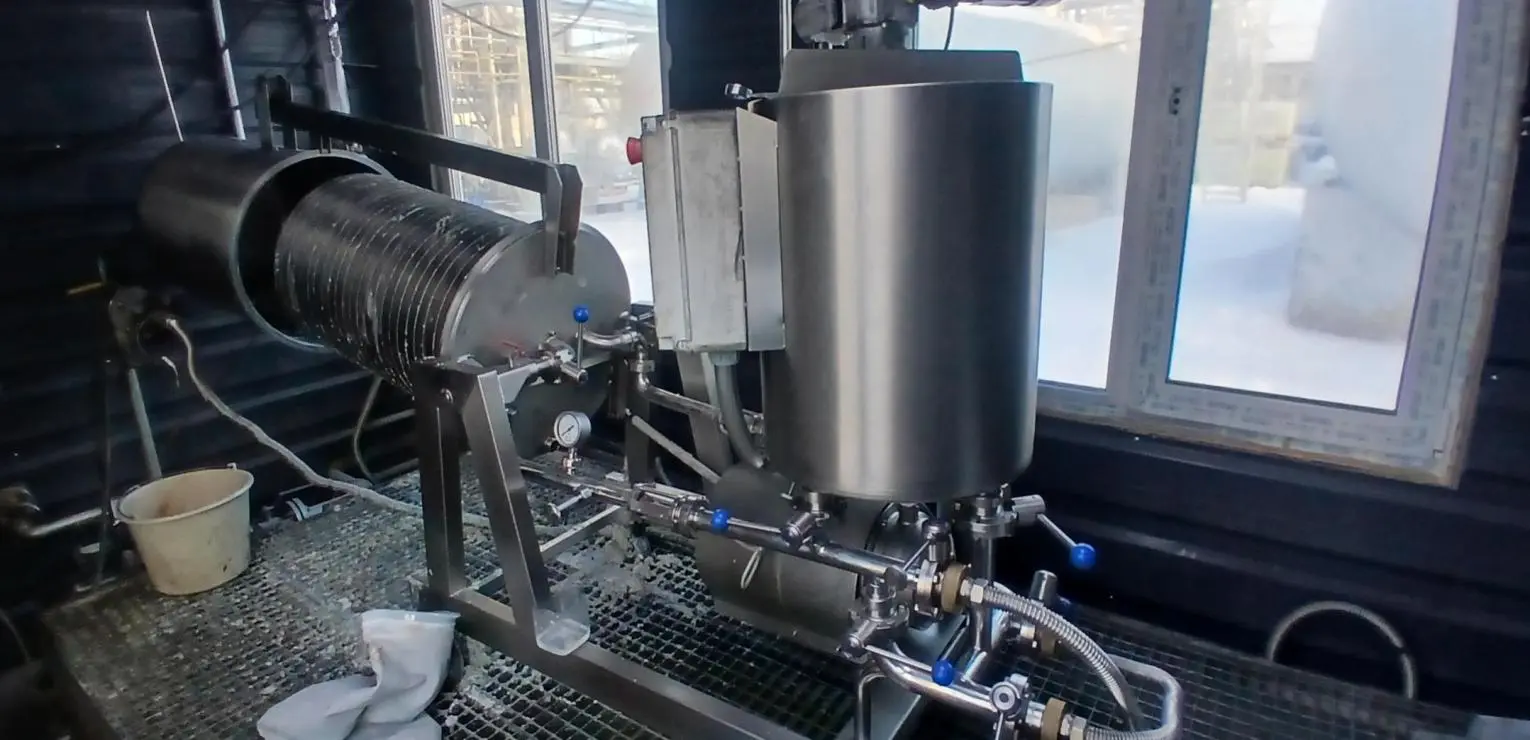

Mixing Tank Specifications:

300L capacity mixing tank

304 stainless steel construction

1.1kw motor power

600mm diameter × 1100mm height

The Armenian client reported significant improvements in their wine clarity and production efficiency after implementing Shanghai Junyi's solution.  The system's ability to use various filter media including polypropylene membranes, filter paper, and specialized wine filtration membranes provides winemakers with flexible options for different wine varieties.
