Intelligent Multi-Industry Membrane Filter Press for Petrochemicals

Product Description

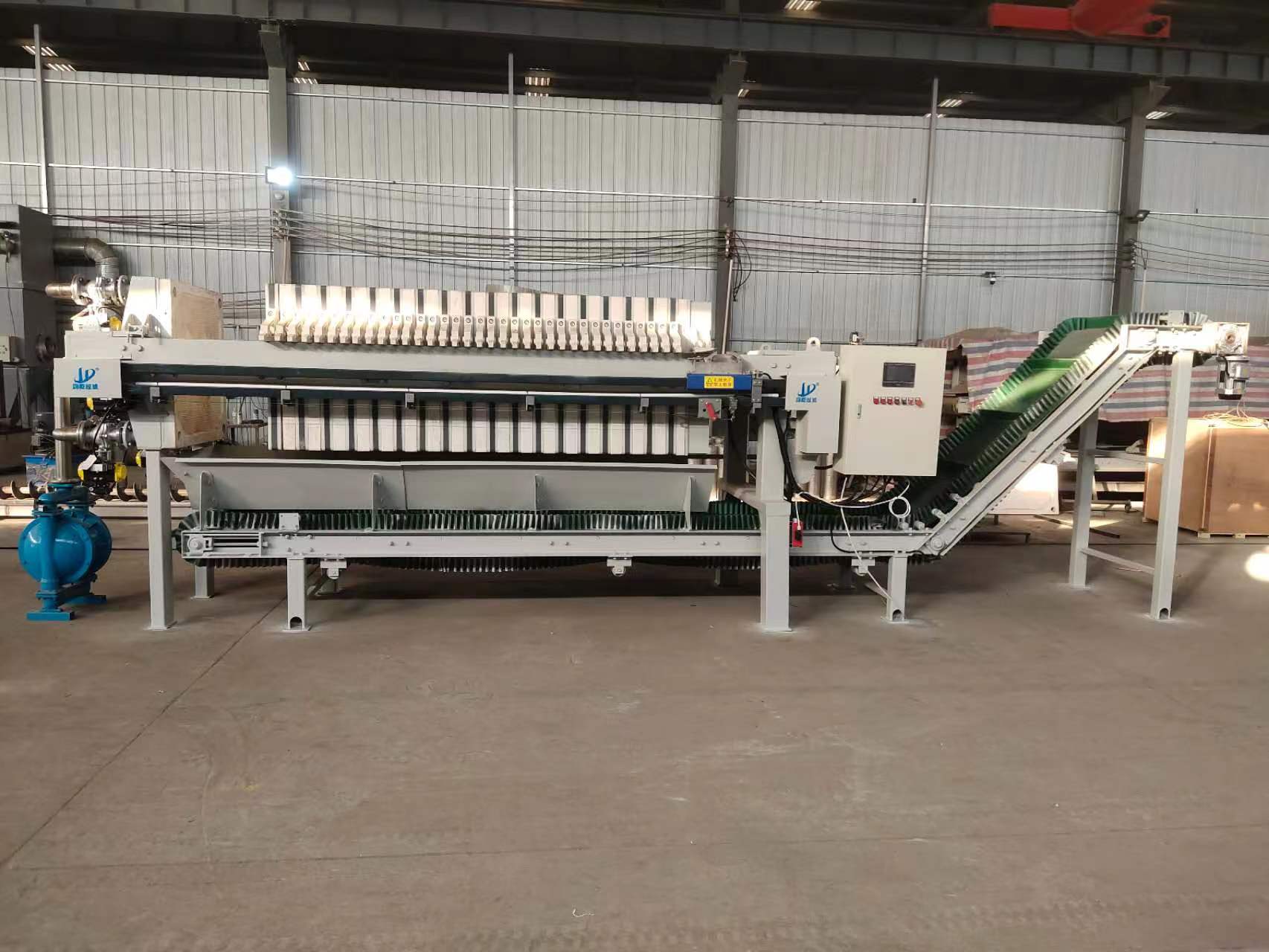

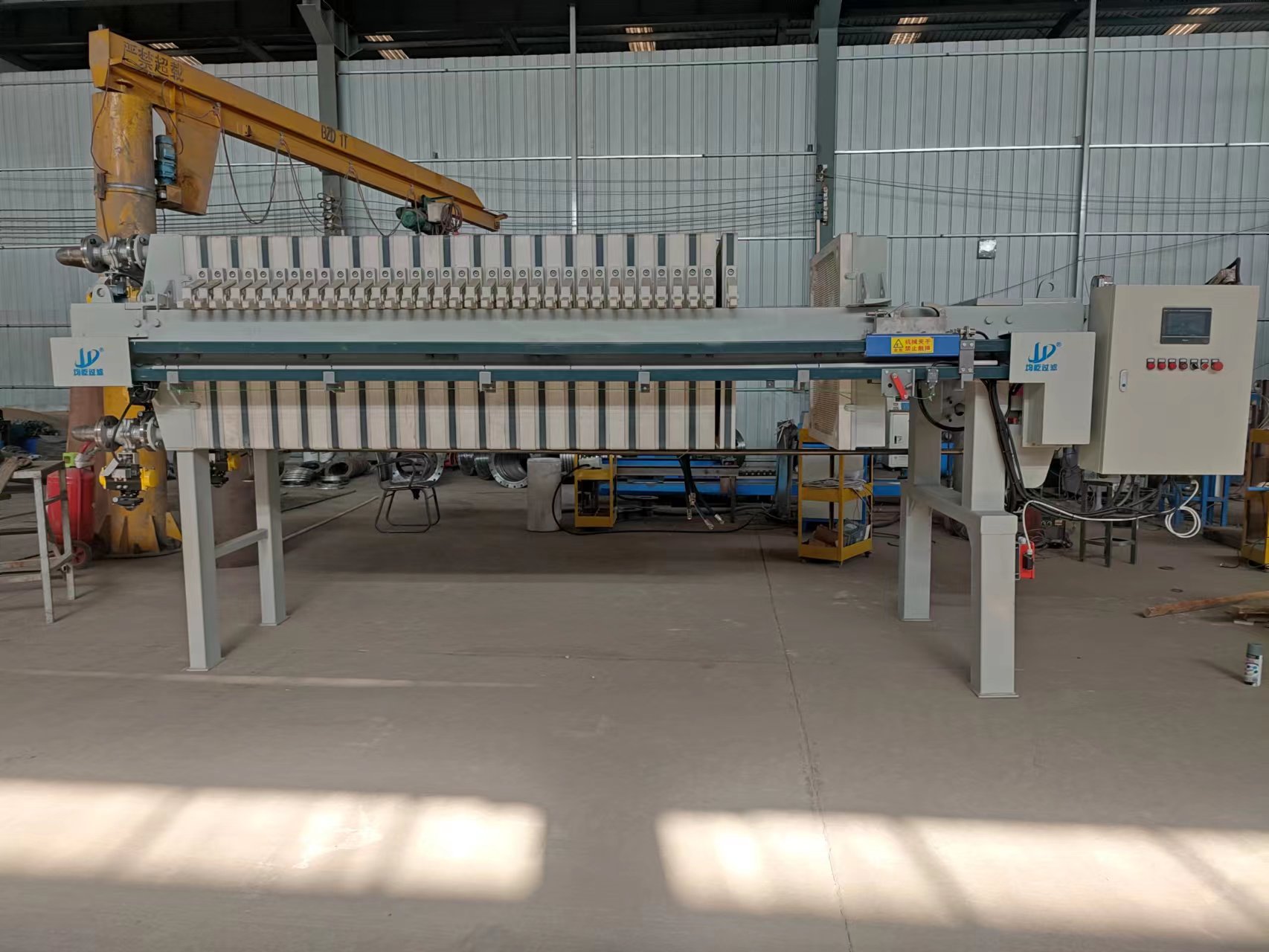

                                                                                            Membrane Filter Press

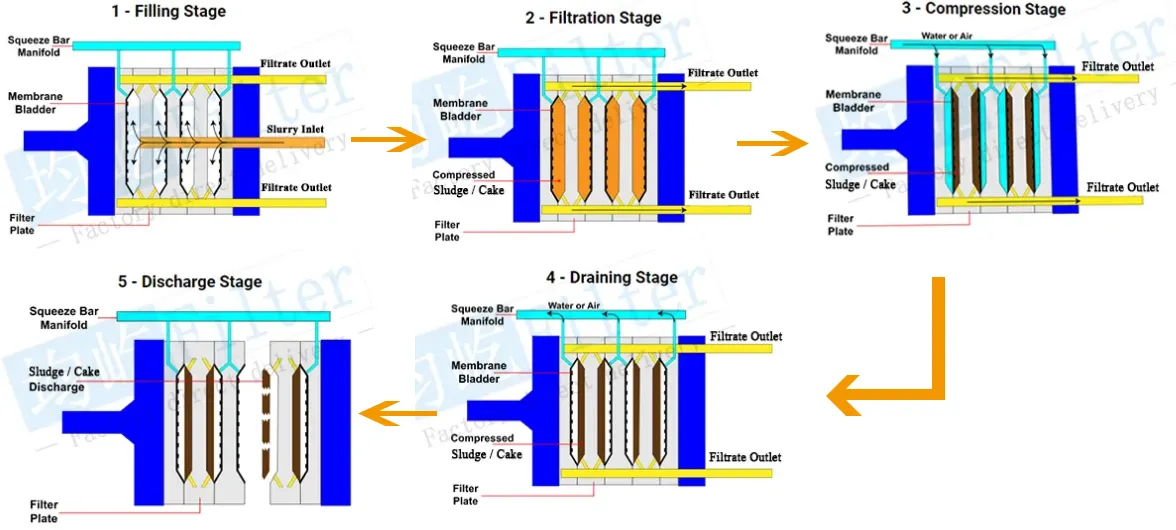

  The process of filtration in the membrane filter press is similar to chamber. But the fundamental difference is the fact that when filling the chambers with sediment it is not unloaded immediately, and further, it is pressed under the action of fluid supplied under the membrane. It has the advantage of rapid separation times and homogeneous cake
dryness.The possibility for squeezing appears due to the membrane plates. The use of membranes for the mechanical squeezing of sediment can significantly reduce the time of one cycle and enhance the daily performance of the filter press.

  The diaphragm filter press achieves efficient solid-liquid separation and low moisture content filter residue by filling the filter chamber with packing slurry and then injecting high-pressure medium (water or air) into the back of the elastic diaphragm to squeeze the filter cake.
